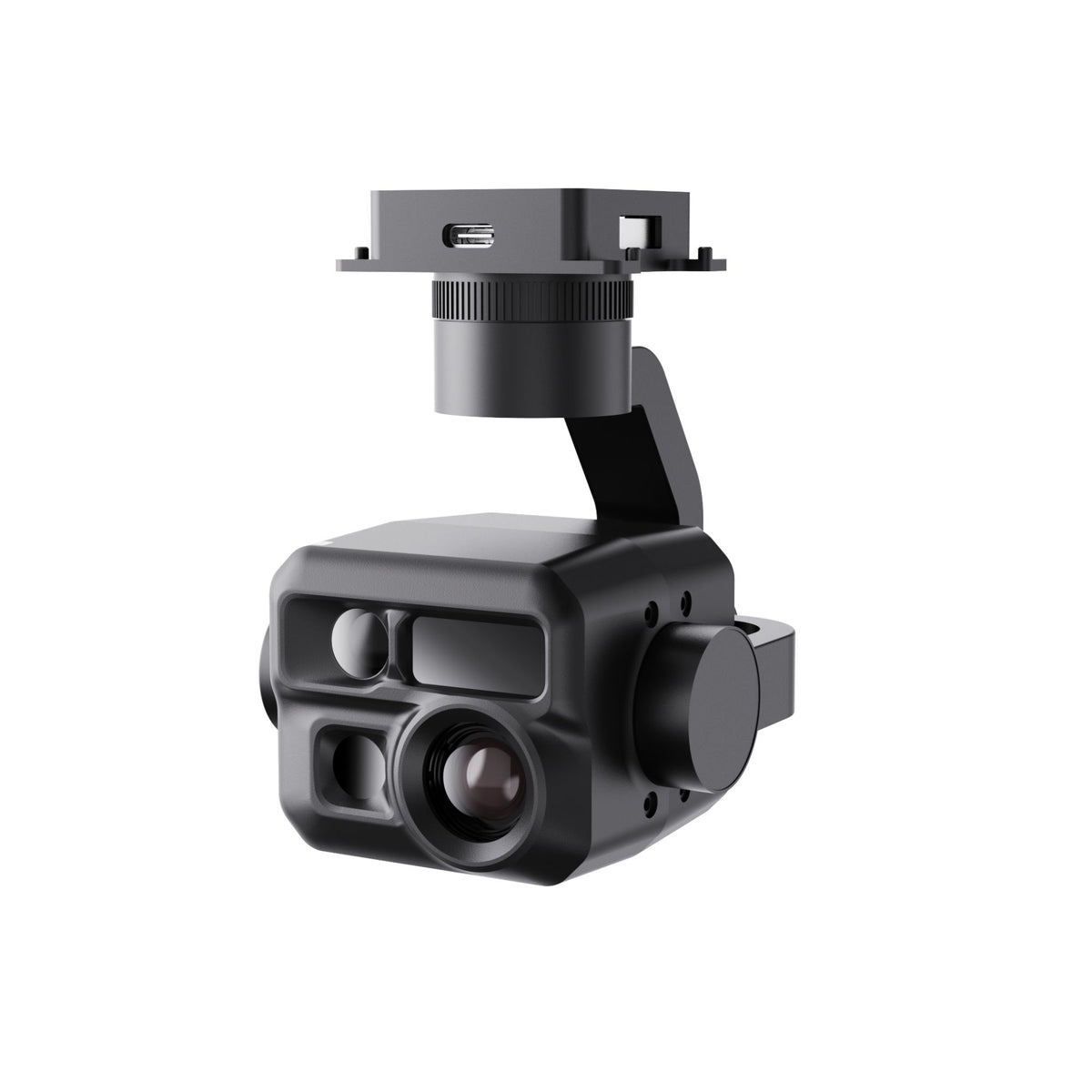

WAVA CML1 AI RGB + Thermal Camera Drone Gimbal
Operators must follow all local laws and fly safely. Professional installation is required. [Read our full Safety & Warning Notice]
Shipping & Delivery
Please allow 1-3 business days to process your order. Estimated delivery time is 5-7 business days (excluding weekends and holidays). For more information, please refer to our Shipping Policy
Returns & Refunds
Before returning any item, please ensure it is unworn, undamaged, and in its original condition with all tags and packaging. We offer a 30-day return policy from the date of delivery. For more information, please refer to our Return Policy
Warranty Policy
TOPTORQ offers a 3-month warranty against manufacturing defects for all full-priced products, starting from the date of purchase. ⚠️ Crucial Note: Please test all components before soldering. Modified, soldered, or altered parts are strictly not eligible for warranty coverage. For more information, please refer to our Warranty Policy
| Gimbal (CML1) | ||
| Specification: | ||
| Hardware | W80.6mm x H107mm x D91mm(3.2”x4.2”x3.6”), 290g(9.2oz), Aluminum 19V~27V(Customizable） | |
| Main Camera | Thermal | |
| Sensor | 1-inch type(1/0.98”), 50.3MP, 1.6um(IMX989) | FLIR Boson+ 640x512 |
| Field of View (FOV) | 72.6° HFOV | 32” HFOV |
| F Value | F1,9 | F1.0 |
| Picture Size | 8192x6144(50MP) | 640X512 |
| 4096x3072(12MP) | ||
| Digital Zoom | 819x614 zoom crop in 50MP mode | |
| 409x307 zoom crop in 12MP mode | ||
| Picture Formal | JPEG/DNG | RJPEG |
| Video Size | 4K(3840x2160) @ 60fps or 30 fps | 640x512@60fps |
| FHD(1920x1080) @ 60fps or 30 fps | ||
| Telephoto Camera | ||
| Sensor | 1/2-inch 48MP, 0.8um(IMX586) | |
| Field of View (FOV) | 14° HFOV | |
| F Value | F2.4 | |
| Picture Size | 8000x6000(48MP) | |
| 4000x3000(12MP) | ||
| Digital Zoom | 800x600 zoom crop in 48MP mode | |
| 400x300 zoom crop in 12MP mode | ||
| Picture Formal | JPEG/DNG | |
| Video Size | 4K(3840x2160) @ 60fps or 30 fps | |
| FHD(1920x1080) @ 60fps or 30 fps | ||
| Laser | ||
| wavelength | 905nm | |
| Human eye safety level | Class 1 (IEC 60825-1) | |
| Distance measurement range | 2-2400m | |
| Measurement Accuracy | 0.5m | |
| Video Formal | MP4 with H.264/H.265 encoding | |
| Live Video Stream | H.264/H.265 1920x1080@30fps | |
| IR Image Display | Side-by-side, picture-by-picture, Superimpose, Mix | |
| IR Color Modes | White hot, Black hot, Rainbow, RainHC, Ironbow, Lava, Arctic, Glowbow, Graded Fire, Hottest | |
| Processing & AI | AI Engine: 15 Tera Operation | |
| Gimbal System | Stabilization: 3-axis with±0.02° precision | |
| Movement: Pan/Yaw ±90°, Tilt-90° to +10°, Roll±45° | ||
| Wind Resistance: Level 6(max 14m/s) | ||
| SD card Support | ExFAT with 64GB or larger V30 100MB/s | |
| Connectivity | CAN, UART, SBUS, PPM, Ethernet(10/100 Mbps), USB 3.0, HDMI | |
| Environmental | Operating Temperature:-10℃ to 50℃ | |
| Certifications: FCC, IP44 | ||
